13.2 Self-Consistency and Tree-of-Thoughts

DATA 443/643 · Week 13 · PDF · Slides

Majority vote +17.9 pp on GSM8K. Vote on answers, not wording.

These notes match the lecture slides. Use (slides) on the course hub for the deck.

One chain is a sample, not a proof. Self-consistency asks for several traces and votes. Tree-of-thoughts (ToT) searches among partial plans instead of committing to a single left-to-right story. By the end you should be able to run a majority vote on parsed answers, say why temperature 0 is not self-consistency, and contrast a tree with a tool loop.

1. What self-consistency and Tree-of-Thoughts are

Self-consistency (SC) is majority vote over several CoT traces. Sample $k$ traces (temperature $>0$), parse an answer from each, and take the majority. The hope: wrong paths disagree; right paths land on the same number. Voting on the answer, not on the wording of the steps, is the usual rule.

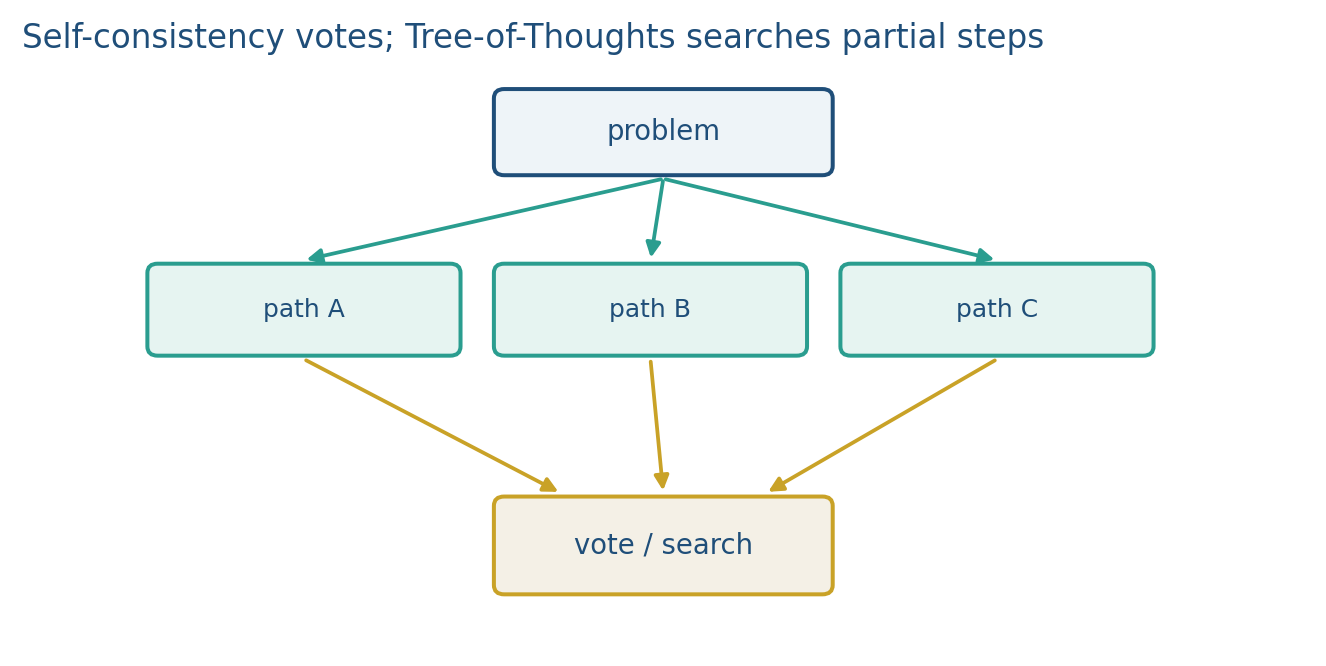

Tree-of-Thoughts (ToT) is search among partial thoughts, not i.i.d. samples. A “thought” is a node: a subgoal, a candidate equation, a next move in a game. You expand a few children, score them (a prompt, a heuristic, or a checker), and keep a beam or run BFS/DFS. Greedy CoT is a tree of depth equal to one chain and width 1. ToT buys width.

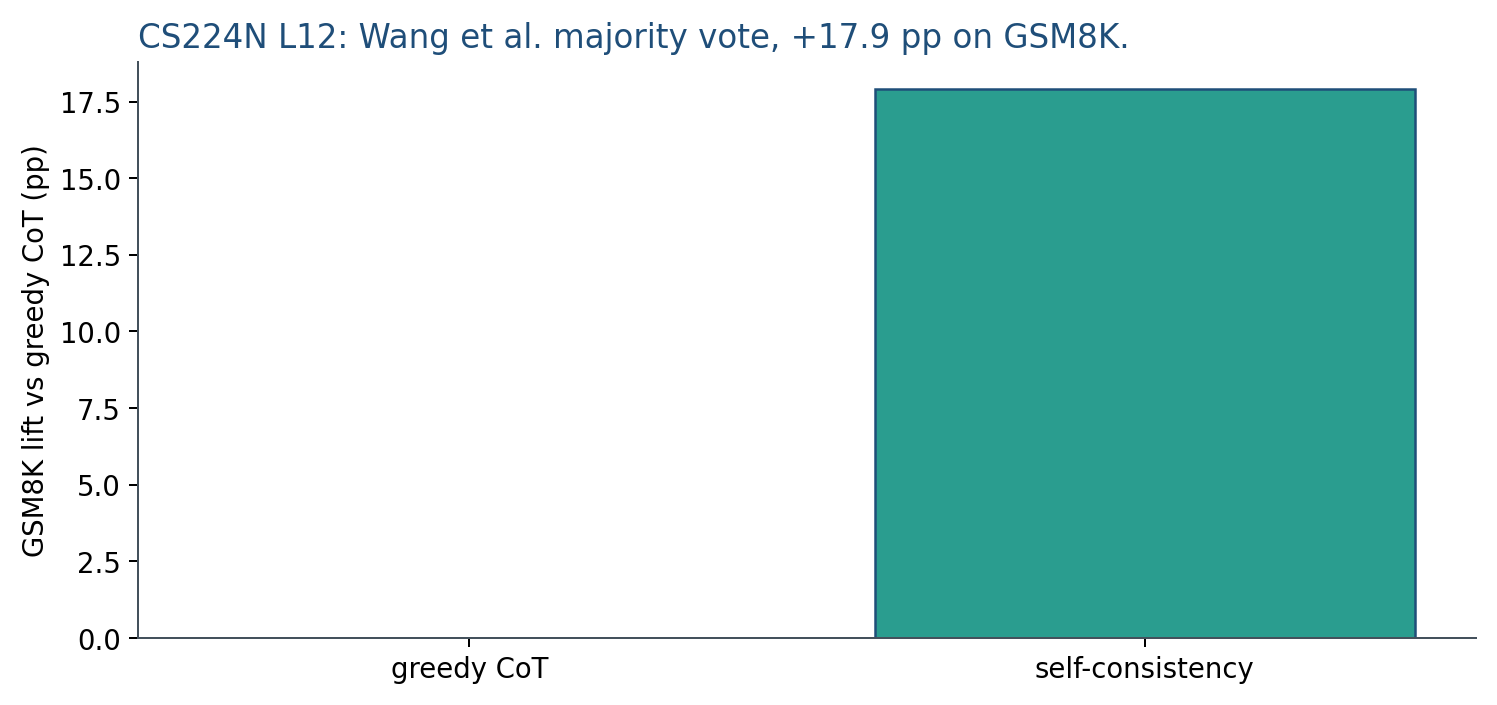

Temperature 0, $k=3$ is not SC: you will get identical greedy traces. Self-consistency does not fix a shared bug. If every trace uses the same wrong formula, the majority is still wrong. Wang et al. reported that majority vote raised GSM8K by +17.9 percentage points versus greedy CoT. That is a lift on the box. It is not a faithfulness claim (note 13.3).

This course’s version of extra test-time compute is $k$ traces. Do not assign DeepSeek-R1, GRPO, or a 256-expert run as homework.

2. Why we use it

One CoT is noisy. A single greedy chain can hit a digit bug and box 32 for $23+19$. Sampling several traces and voting on the parsed number is a cheap noise reducer when errors are diverse.

ToT helps when you need a tree, not $k$ independent tapes. For $6\times 7+5$, nodes “do multiply first” versus “do add first” can be scored before you decode a full wrong chain. ReAct (note 14.2) is a different control loop: the node can be a tool call, not only more text. Vote versus tree versus tools are three knobs. Do not mix the names in the report.

Always include a greedy CoT baseline at $k=1$. Cost belongs in the table: tokens, or wall time on the hardware you used.

3. Architecture

Self-consistency is a decoder plus a parser plus a vote. There is no new network. You pay $k$ forwards. Report $k$ and the parser (last integer, boxed span, regex). Lab 13 does that vote on constructed strings.

ToT is a frontier of partial strings, a scorer (LM or checker), and a search rule (beam / DFS / BFS). That is search with an LM as the proposal distribution. ToT has no single loss.

A cheap ToT scorer you can actually run in this course: last integer equals a known subgoal, a unit test, or calc from Week 14. An unconstrained “does this thought look good?” prompt is another noisy LM, not a checker.

4. How it works, step by step

Self-consistency.

1. Use a CoT prompt from note 13.1. Set temperature $>0$ so traces can disagree.
2. Sample $k$ independent traces.
3. Parse one answer from each (last integer, boxed span, or a regex). Do not vote on full step strings: different wording of the same algebra would split the vote.
4. Take the majority. Write down a tie-break rule in advance.
5. Plot accuracy against $k$ if you use this in a project; the curve usually flattens.

Tree-of-Thoughts.

1. Represent a partial plan as a node (for example “multiply first” versus “add first”).
2. Expand a few children from the frontier.
3. Score them with a checker when you have one; prune the rest.
4. Decode a full chain only along surviving branches.

Lab 13’s vote is the SC half: three constructed traces for $23+19$, majority on the parsed number. The ToT cartoon in the worked example is search, not three i.i.d. tapes.

5. Mathematical formulas

Self-consistency parses each trace ${\tau }_i$ to an answer and takes the mode:

ToT has no single loss; it is search. Accuracy versus $k$ is the self-consistency plot. For ToT, accuracy versus expansion budget (nodes scored). Always include greedy CoT at $k=1$.

6. Positive points and negative points

Positive.

• SC is simple: sample, parse, vote. Lab 13 can do it on constructed strings.
• Diverse errors cancel; a $k=1$ miss can become a majority hit.
• The GSM8K-style lift is a real box-accuracy result you can cite as motivation, not as a faithfulness claim.
• ToT can kill a wrong branch before you pay for a full chain, if the scorer is a checker.

Negative.

• Cost scales with $k$ (or with nodes scored).
• Shared bugs survive the vote: three copies of $23+19=32$ still vote 32.
• Temperature 0 produces identical traces, so $k>1$ is wasted.
• ToT needs a scorer; an unconstrained “looks good?” prompt is not a checker. The search math is not in this hour.
• ReAct (note 14.2) calls tools instead of searching thoughts. Mixing the names hides the knobs.

When not to. A lookup that does not benefit from extra traces. A task where you already have a calculator: call the tool (Week 14) instead of voting on invented arithmetic.

7. What to measure

Accuracy versus $k$ is the self-consistency plot. For ToT, accuracy versus expansion budget (nodes scored). Always include a greedy CoT baseline at $k=1$. Cost belongs in the table: tokens, or wall time on the hardware you used.

8. Teaching this note

About 35 minutes at the board, then ~10 minutes of video. Self-consistency is the vote; the ToT paper is the search cartoon.

• 0–12 min. Temperature $>0$, $k$ traces, vote on the parsed answer. Tie-break rule.
• 12–22 min. ToT as width: expand, score, keep a beam. Contrast with ReAct (tools).
• 22–33 min. Worked majority vote on three traces (Lab 13 numbers).
• Then play Karpathy Deep Dive 1:46:56–2:01:11 (models need tokens to think). Pause on distributing hard work across tokens; then say: self-consistency is $k$ of those traces, ToT is a tree of them.

9. Worked example

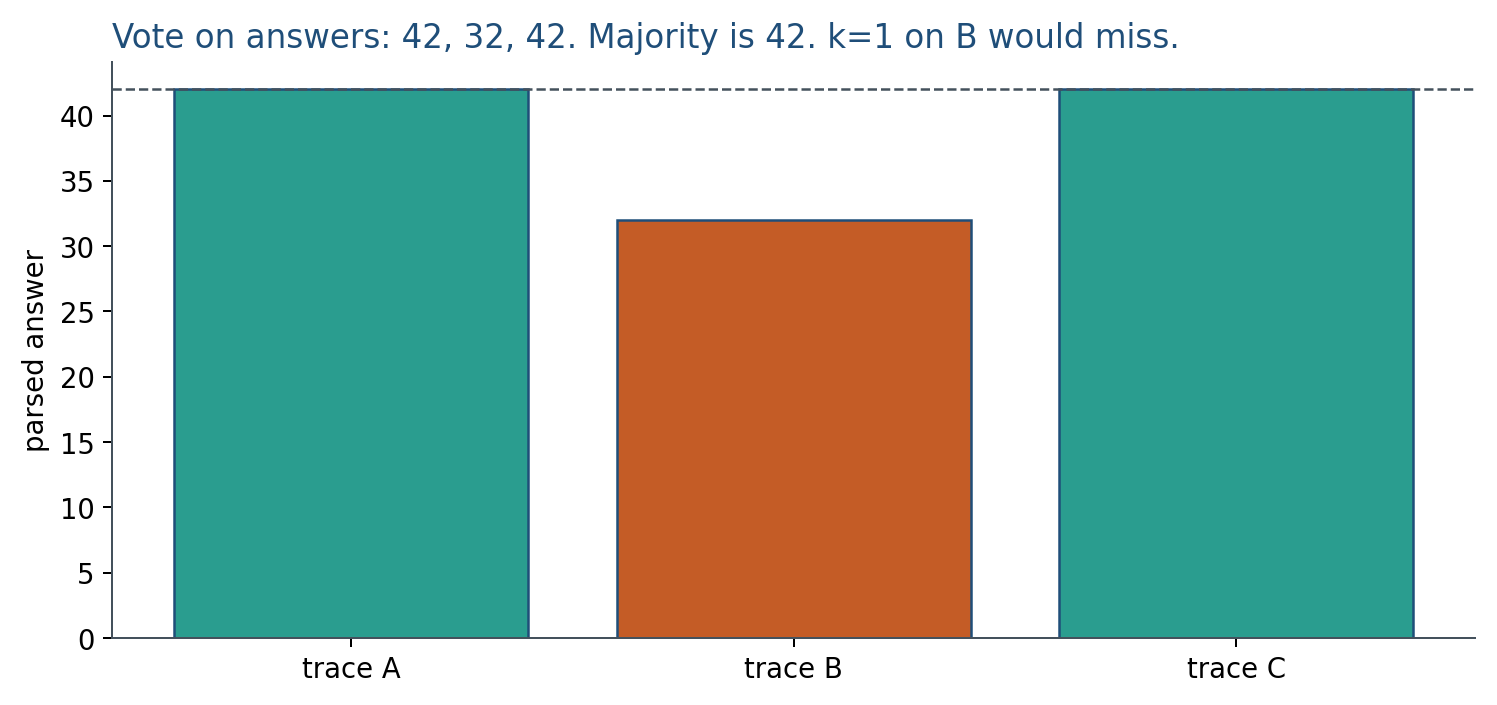

Problem: $23+19$, gold $42$. Three traces, answers only (Lab 13 style):

Vote on answers: $42,32,42$. Majority is $42$ (2 of 3). $k=1$ using only B would have scored 32 and missed. Self-consistency caught the disagreement.

Tie example: answers $42,32,32$. Majority is $32$, which is wrong. Voting is not a proof; it is a noise reducer when errors are diverse.

Shared-bug example: all three use $23+19=32$. Vote is 32. $k=3$ does not help. A checker (note 13.3, or a calc tool in Week 14) would.

ToT cartoon for $6\times 7+5$: nodes “do multiply first” vs “do add first.” A cheap scorer (PEMDAS, or eval) kills the add-first branch before you decode a full wrong chain.

10. Where students get stuck

• Sampling at temperature $0$ and wondering why all $k$ traces match. You need diversity for a vote.
• Voting on the wording of the steps. Parse an answer; majority on that.
• Calling ToT “just CoT with more words.” ToT scores partial nodes and prunes.

11. Video

Watch Andrej Karpathy, Deep Dive into LLMs like ChatGPT, 1:46:56–2:01:11.

Pause on “models need tokens to think”: extra tokens are extra compute. This course’s self-consistency is $k$ independent traces plus a vote; ToT is search over partial thoughts. Optional: 2:14:42–2:27:47 (RL that explores many solutions) if you want a later-week bridge. Note 13.3 uses a different chapter of the same URL.

12. Practice

1. Why does self-consistency need temperature greater than 0?

2. Give one failure that majority vote cannot catch.

3. ToT scores partial thoughts. Why is a cheap checker (arithmetic, a unit test) a better scorer than another unconstrained prompt, when you have one?

4. Traces vote $47,65,47,47$. What is the majority, and what is $k$? Gold is $47$. Did vote beat a first-trace-only policy if the first trace was $65$?

5. Answers $408,408,238$ for $17\times 24$. Write the vote. If you instead vote on full step strings (all different wording), what goes wrong?
