12.3 Latent Diffusion and Text Conditioning

DATA 443/643 · Week 12 · PDF · Slides

12× fewer latent cells. CFG: s=1 is still conditional.

These notes match the lecture slides. Use (slides) on the course hub for the deck.

Pixel-space diffusion on $256\times 256$ RGB is expensive. Latent diffusion (Rombach et al.) denoises in a compressed space. Text enters as a condition, usually from a frozen CLIP text tower (Week 5). By the end you should be able to count latent cells against pixels, write classifier-free guidance, and say what $s=1$ is not.

1. What latent diffusion and classifier-free guidance are

Latent diffusion denoises in a VAE latent, not in pixels. A pretrained encoder $E$ maps an image to ${\mathit{z}}_0=E(\mathit{x})$. You run the forward process of note 12.1 on $\mathit{z}$, not on pixels. A decoder $D_{\mathrm{V}\mathrm{A}\mathrm{E}}$ turns the final latent back into an image. Training the U-Net on latents is cheaper; the VAE already threw away some high-frequency detail.

Classifier-free guidance (CFG) is how you steer that denoiser with a caption. You train one net with and without the text, then at sample time mix a conditional noise prediction ${\epsilon }_c$ with an unconditional prediction ${\epsilon }_u$. Scale $s$ sharpens the condition. $s=1$ is still conditional (it is just the conditional net). $s=0$ is the uncond branch. High $s$ is sharper and less diverse.

Text is a CLIP (or T5) vector. CLIP scores pairs; it does not decode a caption (note 5.2). Here you only need the text embedding as a handle. You want $p(\mathit{x}\mid \text{caption})$, not an unconditional generator.

2. Why we use it

Pixels are huge. Latent cells are fewer (on the order of $12\times$ fewer in the classroom cartoon, about $48\times$ on Stable Diffusion’s public $64\times 64\times 4$ for ${512}^2$). Fifty reverse steps on the small tensor are cheaper than fifty steps on pixels.

Text needs a condition or you sample generic images. Concatenating a CLIP vector, or using cross-attention so latent tokens query text tokens, is how the caption enters the U-Net. CFG exists because a single conditional prediction is often too mild: extrapolating away from the unconditioned guess is a cheap way to raise prompt match, at the cost of variety.

Conditioning does not remove Week 5’s bias story: the same CLIP geometry is in the loop.

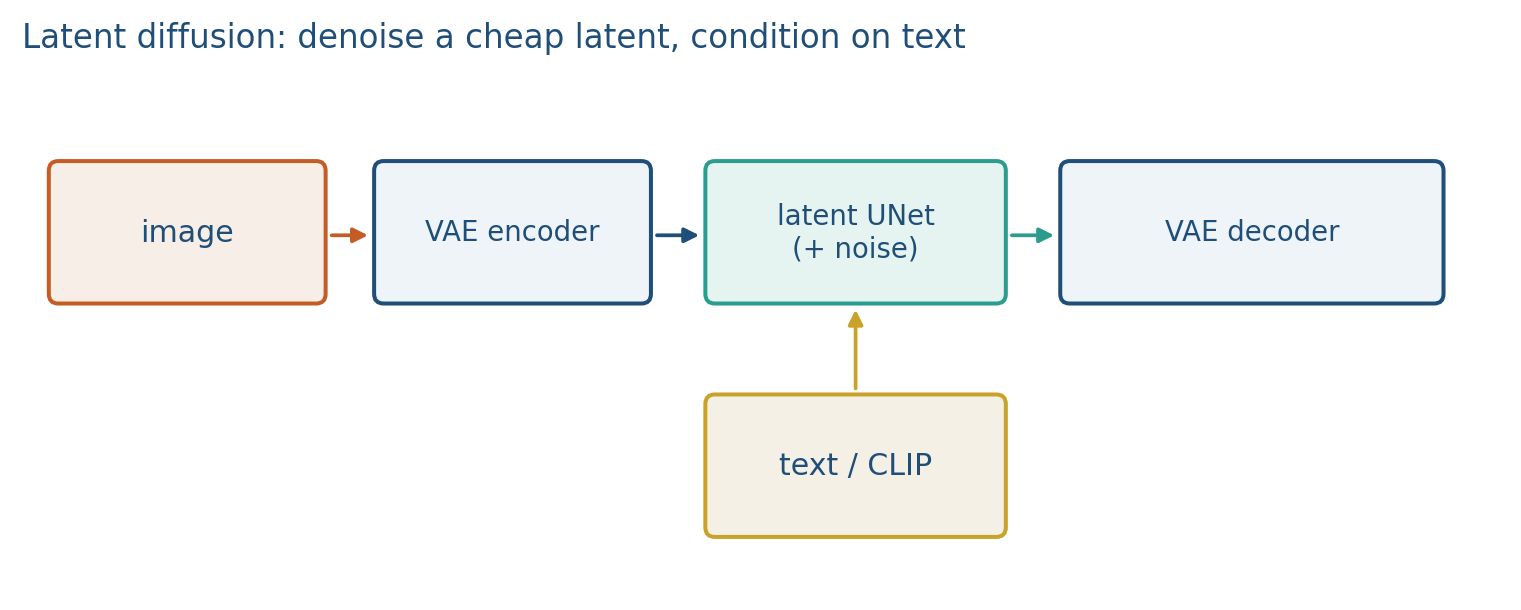

3. Architecture

Three frozen or trained pieces sit around the denoiser you already know.

1. VAE encoder / decoder. Frozen at diffusion-training time in the usual recipe. Encode $x_0\to z_0$, diffuse $z$, decode at the end.
2. Denoiser on $z_t$. U-Net or DiT, with a time embedding, now also taking a condition $c$.
3. Text encoder. CLIP’s text tower (note 5.1) or T5. Inject $c$ by concatenating it to the timestep embedding, or by cross-attention.

Stable Diffusion is this picture plus a big text-conditioned U-Net. The idea is the same at homework scale: compress, denoise, decode.

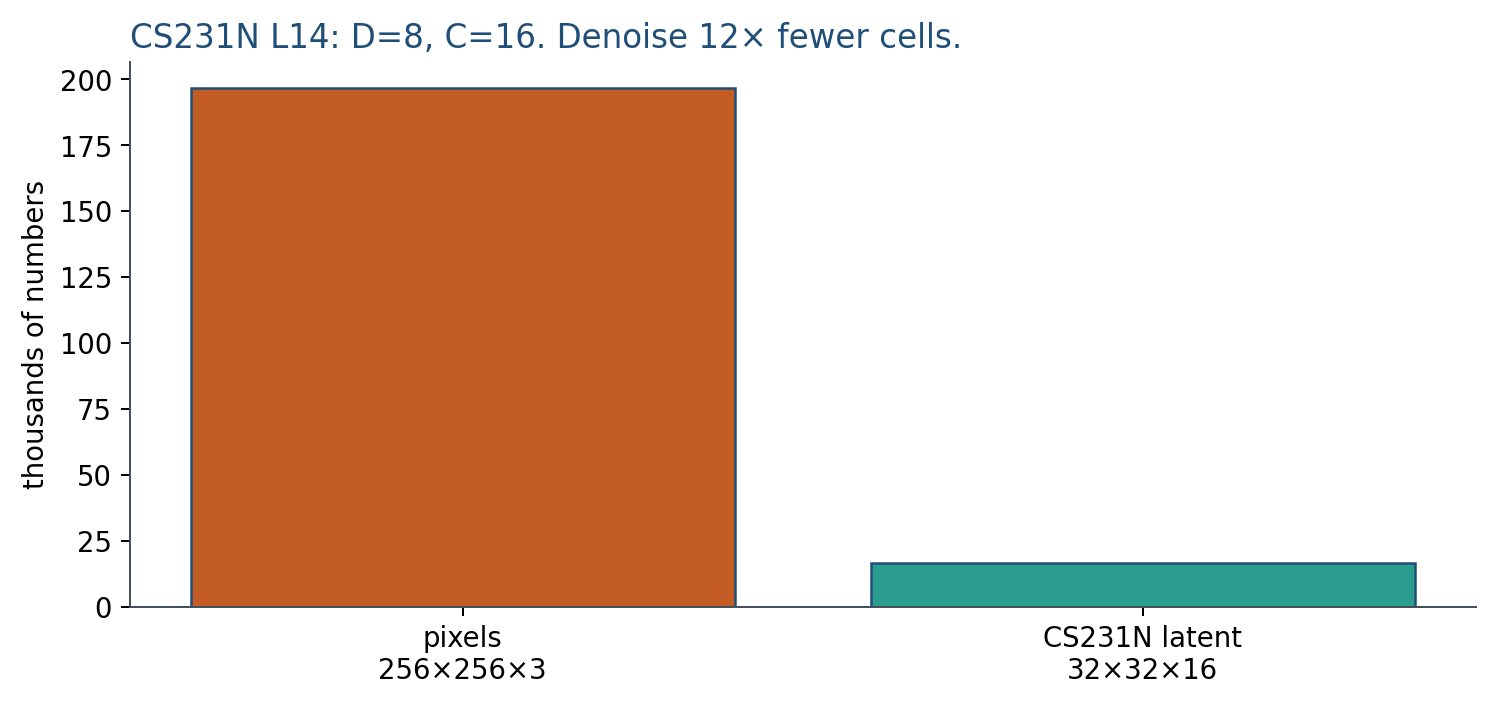

Typical sizes to say out loud: an image $512\times 512\times 3$ becomes a latent like $64\times 64\times 4$. You pay diffusion steps on the small tensor. A classroom setting is $D=8$, $C=16$: $256\times 256\times 3=196,608$ numbers versus $32\times 32\times 16=16,384$ (about $12\times$ fewer). Stable Diffusion’s public $64\times 64\times 4$ on ${512}^2$ is about $48\times$. Denoise the small tensor.

Modern LDM pipelines can stack a VAE, a GAN (for the decoder), and diffusion. DiT exists. This hour is the VAE-latent picture, not a transformer-block homework. CFG is two forwards at sample time, then a mix: $\widehat{\epsilon }={\epsilon }_u+s({\epsilon }_c-{\epsilon }_u)$.

4. How it works, step by step

Latent path.

1. Encode the image: ${\mathit{z}}_0=E(\mathit{x})$.
2. Run the forward noising of note 12.1 on $\mathit{z}$, train the reverse of note 12.2 on ${\mathit{z}}_t$, conditioned on $c$ when a caption is present.
3. At sample time, start from noise in latent space, walk the reverse chain, decode $\widehat{\mathit{x}}=D_{\mathrm{V}\mathrm{A}\mathrm{E}}({\mathit{z}}_0)$.

Conditioning. Encode the caption with CLIP’s text tower. During training, randomly drop the text so one net is both conditional and unconditional (the empty prompt $\varnothing$).

Guidance at sample time.

1. Run the net twice (or batch the two): ${\epsilon }_u={\epsilon }_{\theta }(z_t,t,\varnothing )$ and ${\epsilon }_c={\epsilon }_{\theta }(z_t,t,c)$.
2. Mix with scale $s$: $\widehat{\epsilon }={\epsilon }_u+s({\epsilon }_c-{\epsilon }_u)$.
3. Plug $\widehat{\epsilon }$ into the reverse-step mean from note 12.2.

$s=1$ recovers ${\epsilon }_c$: still conditional, not “off.” $s>1$ extrapolates away from the unconditioned guess. A huge $s$ can look like a poster of the prompt and still miss modes (Week 11’s coverage lesson, now in prompt space). Report $s$.

The lab for this week is still 2-D denoising from notes 12.1–12.2. This note is the picture that products use; you do not train Stable Diffusion here.

5. Mathematical formulas

Classifier-free guidance mixes two noise predictions:

At $s=1$, ${\widehat{\epsilon }}_{\theta }={\epsilon }_{\theta }(z_t,t,c)$. At $s=0$, you are on the unconditional branch. The latent forward process is the same Gaussian jump as note 12.1, with $z$ in place of $x$.

6. Positive points and negative points

Positive.

• Denoising a latent is cheaper than pixel DDPM by a large constant (classroom $~12\times$, public SD $~48\times$).
• A frozen CLIP text tower is enough to steer generation without decoding a caption.
• CFG is one scalar $s$ that raises prompt match without training a separate classifier.
• Randomly dropping text in training gives you both branches from one net.

Negative.

• The VAE throws away high-frequency detail; decode artifacts are part of the method.
• CFG is a quality–diversity knob: high $s$ sharpens and washes out variety.
• You still pay many reverse steps, now twice per step if you run both branches.
• CLIP’s image tower is for scoring pairs, not for sampling; fine-tuning it at sample time is the wrong tower.

When not to. Unconditional 2-D denoising (Lab 12) does not need a VAE or CFG. A task that only needs a CLIP similarity score does not need a decoder.

7. What to measure

Text-to-image is not “the picture looks nice.” Report a prompt-alignment score (CLIP cosine of image vs text), a coverage or diversity check, and a failure case (wrong count, wrong object, reading text in the image). Conditioning does not remove Week 5’s bias story: the same CLIP geometry is in the loop.

8. Teaching this note

About 35 minutes at the board, then ~12 minutes of selected video from the first 45 minutes (do not play the five-hour coding rest).

• 0–12 min. Why latents: VAE encode / denoise / decode. Count pixels vs latent cells.
• 12–22 min. CLIP text tower as $c$. Cross-attention in one sentence.
• 22–33 min. Classifier-free guidance with numbers. Diversity vs prompt match.
• Then play Umar Jamil Stable Diffusion 4:30–12:07 (what SD is; forward/reverse in this stack) and 22:20–31:00 (CFG). Optional 31:00–39:54 (CLIP + VAE + text-to-image) if time. Stop by 45:00.

9. Worked example

Latent size. A $512\times 512\times 3$ image is $786,432$ numbers. A $64\times 64\times 4$ latent is $16,384$ numbers: about $48\times$ fewer. Fifty reverse steps on the latent are cheaper than fifty steps on pixels.

Guidance. Let the net’s two noise guesses (one scalar, to see the algebra) be ${\epsilon }_{\theta }(z_t,t,\varnothing )=0.8$ (unconditional) and ${\epsilon }_{\theta }(z_t,t,c)=0.2$ (with prompt $c$). The difference is $0.2-0.8=-0.6$.

$s=1$ is “use the text-conditioned prediction.” $s>1$ extrapolates away from the unconditioned guess. That is why a huge $s$ can look like a poster of the prompt and still miss modes (Week 11’s coverage lesson, now in prompt space).

s=1,3,7.5 on a scalar pair" src="files/graphics/12.3-latent-conditioning/cfg-scale.png" />

Randomly drop the text in training so one net is both conditional and unconditional. Two forwards at sample time, then mix with $s$.

10. Where students get stuck

• Fine-tuning CLIP’s image tower at sample time. Text-to-image needs the text tower (and a VAE decoder). The image tower is for scoring pairs, not for sampling.
• Calling $s=1$ “no text.” $s=1$ is still conditional; the empty prompt $\varnothing$ is the other call.
• Measuring only FID or only “looks nice,” with no prompt-alignment number and no failure case.

11. Video

Watch Umar Jamil, Coding Stable Diffusion from scratch in PyTorch, 0:00–45:00 assigned, with in-class pauses at 4:30–12:07 (what Stable Diffusion is; forward/reverse) and 22:20–39:54 (classifier-free guidance, CLIP, VAE, text-to-image).

Do not start the coding chapters (VAE implementation from 44:30 onward) in this lecture. The board is the picture; the lab is still 2-D denoising from notes 12.1–12.2.

12. Practice

1. Why denoise latents instead of pixels if you already have a VAE?

2. CLIP’s image tower is optional at sample time for text-to-image. Which CLIP tower is not?

3. Guidance scale $s=1$ versus $s=12$: what do you expect to happen to prompt match and to variety?

4. ${\epsilon }_{\text{uncond}}=1.0$, ${\epsilon }_{\text{cond}}=0.4$, $s=5$. Compute $\widehat{\epsilon }$.

5. A $256\times 256\times 3$ image vs an $32\times 32\times 4$ latent: how many numbers in each, and what is the ratio (image / latent)?
