7.3 CNN Text Classification

DATA 441/641 · Week 7 · PDF · Slides

Several kernel sizes, then a classifier on the pooled features.

These notes walk through the lecture slides. The original deck is unchanged; use (slides) on the course hub if you want that PDF.

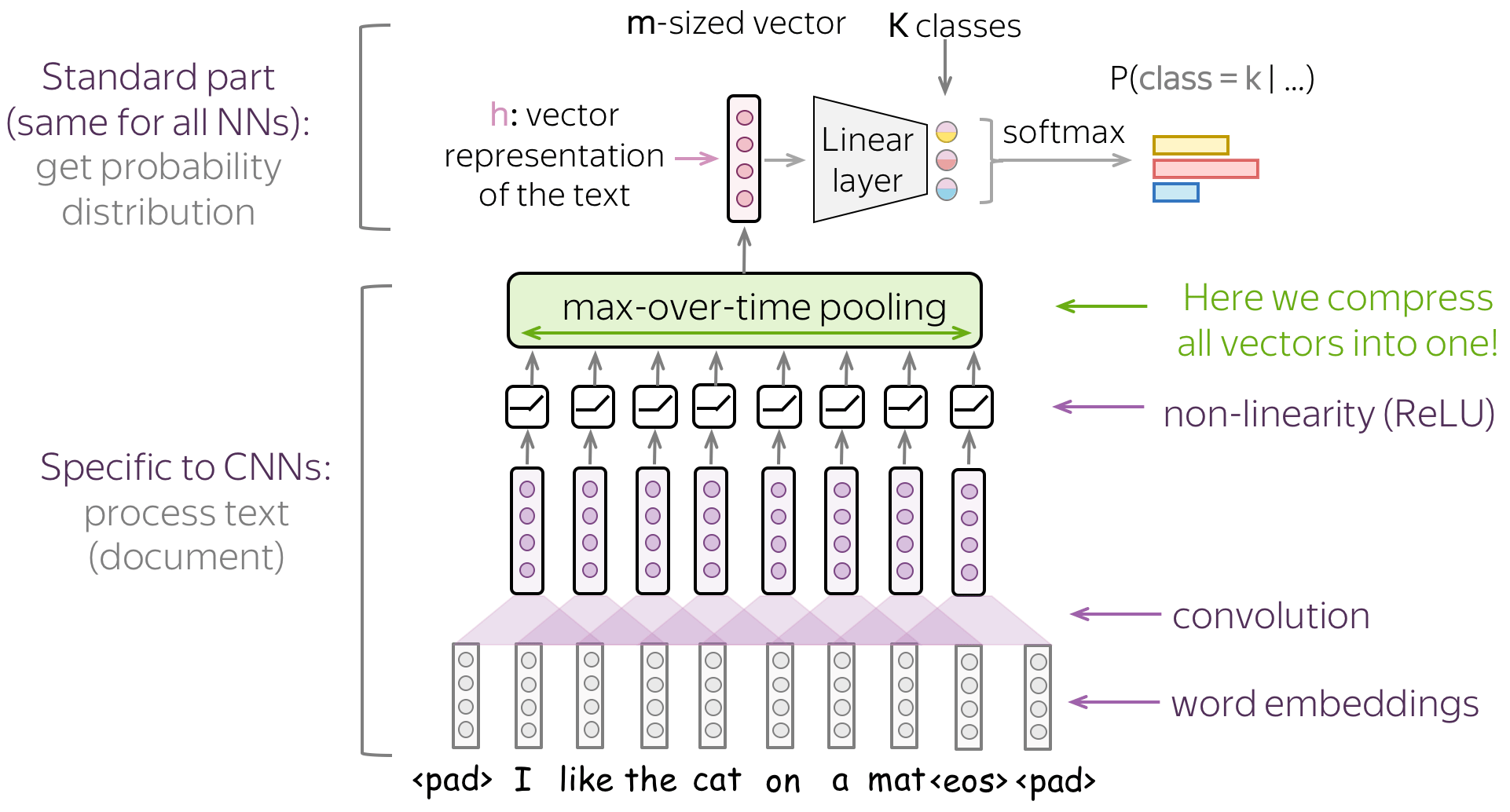

1. From a sentence to one vector

Note 7.2 gave you 1-D filters over embeddings. Classification needs a single vector (or a small stack) that you can pass to a softmax.

The basic move: run the convolutions, then global pool over time. Each filter becomes one number (its max, or its mean, over every window). A sentence of any length becomes a vector of length n_filters. Then a dense layer plus softmax (or sigmoid) produces the label.

The middle can change—more layers, dropout, a residual—but somewhere you have to collapse time. If you skip that collapse you still have a sequence, which is a tagging setup, not a document label.

Sources: Practical Natural Language Processing, Natural Language Processing in Action, and Voita’s notes.

2. Why global max is the default

Global max asks: did this detector fire anywhere? For sentiment, topic, and spam that is usually the right question. terrible in position 2 or position 40 should both count.

Global mean asks how often / how strongly it fired. Use it when the label depends on the whole document (average tone of a long review), not on one smoking-gun phrase.

Either way you get a fixed-width representation. That is the CNN analogue of “average the word vectors,” except the features are learned phrases, not single tokens.

3. Several kernel sizes at once

A kernel of 2 sees pairs. A kernel of 3 sees short phrases. A kernel of 5 sees a longer idiom. You do not have to pick one.

Train parallel conv banks: 100 filters of size 2, 100 of size 3, 100 of size 5 (Kim 2014 is the paper everyone cites). Concatenate the three global-pooled vectors. Classify.

That is the architecture you should be able to draw. It is also the one you will see in Keras as three Conv1D branches into Concatenate.

4. How this sits next to Week 6

Week 6: TF–IDF + linear SVM. Fast, strong, no GPU.

This note: embeddings + multi-kernel CNN. You pay for training time. You gain detectors that share strength across similar phrases (not good / not great) and a representation whose width does not grow with $|V|$.

If the CNN does not beat the SVM by enough to matter, ship the SVM. The pipeline in note 6.1 did not change: vectorize (here: embed + conv), train, evaluate with F1 when the classes are skewed.

5. Failure modes

• Too few examples. A CNN has more knobs than LinearSVC. On 500 labeled tweets the SVM usually wins.
• Kernel too wide. Size 15 on tweets is almost the whole sentence, once. You wanted local features.
• No padding / tiny sentences. Edge tokens never sit in the center of a valid window (note 7.1).
• Ignoring pretrained embeddings. Random embeddings need more data. Start from Word2Vec or GloVe unless the domain is truly alien.

Week 8 replaces the fixed window with a loop that can carry information across the whole sentence.

Kim-style checklist. (1) Embed. (2) Three Conv1D branches. (3) Global max on each. (4) Concatenate. (5) Dropout. (6) Dense + softmax. If you cannot point to those six pieces in a notebook, you do not yet have the lecture model—you have a pile of layers.

6. Evaluation stays Week 6

Accuracy if the labels are balanced. F1 if they are not. A CNN that is 2 points of accuracy better than an SVM and 10 points of minority-class F1 worse is not an upgrade. Report the same classification_report you used for $k$-NN.

7. Practice

1. A review has 40 tokens and you use 128 filters of size 3 with global max. What is the width of the vector that enters the dense layer?

2. Why concatenate kernels of size 2, 3, and 5 instead of one kernel of size 5?

3. You have 400 labeled emails and a good TF–IDF SVM. Should you replace it with this CNN first, or report the SVM as the baseline? Why?
