13.2 R Markdown: Citations and Cross-References

1. Numbered figures and tables

A caption on a plot is ordinary text until the document format knows how to number it. Two routes:

• R Markdown: bookdown::html_document2 (or pdf_document2) instead of html_document
• Quarto: format: html already numbers figures and tables that have captions

output: bookdown::html_document2: toc: true

Install bookdown once in the console if you are knitting an .Rmd. A .qmd does not need that package for numbers.

Put a caption on the chunk. In Quarto:

ggplot(penguins, aes(x = bill_length_mm, y = bill_depth_mm, color = species)) +
  geom_point() +
  theme_bw()

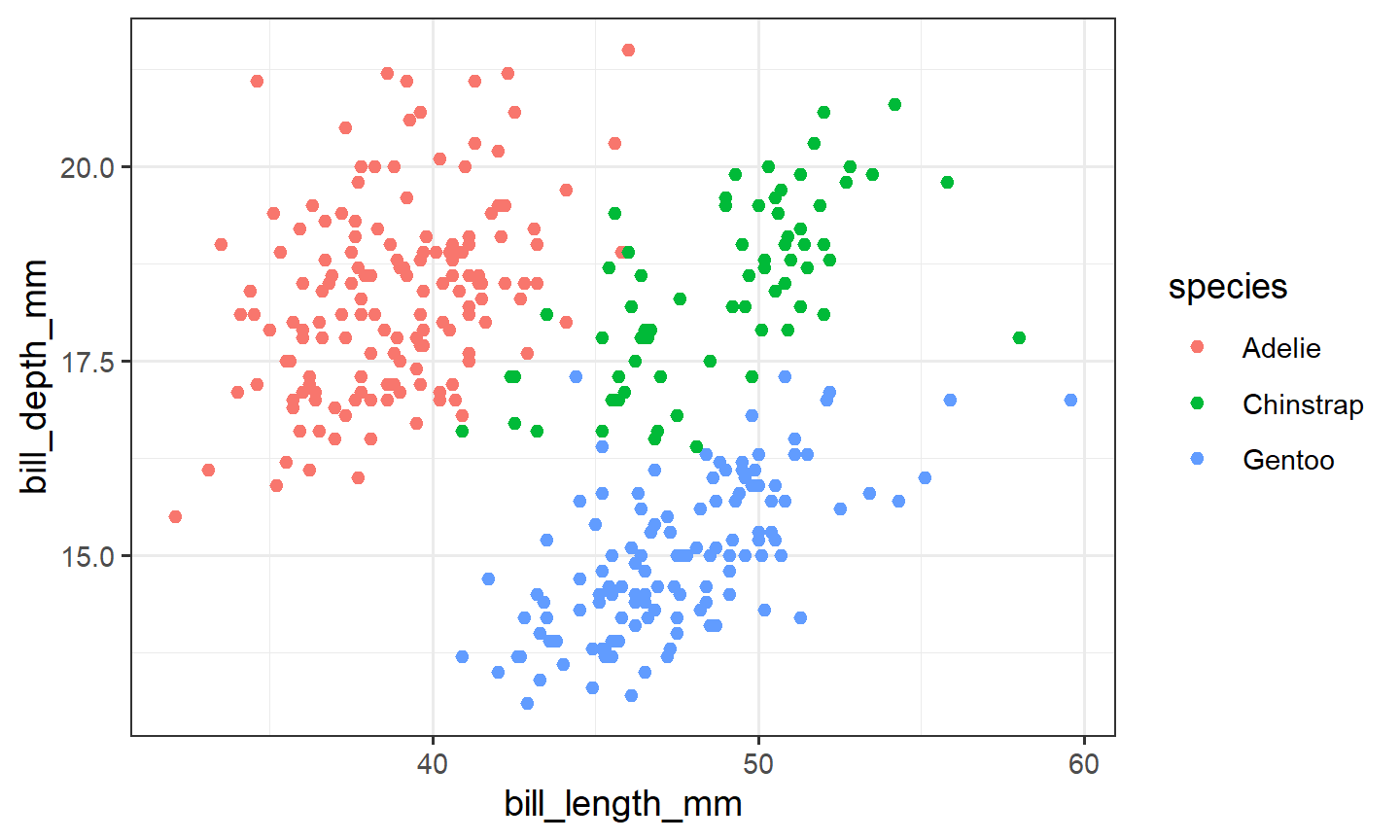

Bill length vs bill depth.

The HTML then prints Figure 1: in front of that sentence. knitr::kable(caption = "...") gets Table 1: the same way.

2. Cross-references

Once the figure has a label and a caption, you can point at it in the prose.

Quarto: Figure @fig-bills or @fig-bills.

bookdown: \@ref(fig:bills) when the chunk is labeled bills and has fig.cap.

A heading can have a label too. Quarto uses {#sec-methods} after the heading. bookdown uses {#methods}. You do not need either for Lab 13.

3. A .bib file

Citations come from a BibTeX file, not from typing the reference by hand. A small refs.bib looks like this:

@Manual{horst2020palmerpenguins, title = {palmerpenguins: Palmer Archipelago penguin data}, author = {Allison Horst and Alison Hill and Kristen Gorman}, year = {2020}, url = {https://allisonhorst.github.io/palmerpenguins/}, }

The word after { is the key. You cite the key, not the title.

Point the document at the file. Quarto and R Markdown both use:

bibliography: refs.bib

Put that line in the YAML, at the same indent as title:.

4. Cite in the text

@horst2020palmerpenguins becomes an in-text citation when you Render. Wrapping it, [@horst2020palmerpenguins], puts the citation in parentheses.

nocite: '@*' in the YAML lists every entry in the .bib, even keys you never typed. Useful for a reading list. Leave it out if you only want the sources you cited.

Add a heading # References (or # Bibliography) at the end. Quarto and pandoc write the list there.

5. Style with CSL

The default author–year look is fine for this course. To match a journal, add a Citation Style Language file:

bibliography: refs.bib csl: apa.csl

Download a .csl from zotero.org/styles and keep it next to the .qmd. You do not write CSL by hand.

6. The same idea in Quarto

A compact header:

No bookdown:: output. Captions still get numbers. @key still cites. The .bib format does not change.

If you are handed an .Rmd that already uses bookdown::html_document2, knit it. Do not rewrite it as Quarto just to get a citation.

7. Practice

1. Sketch a four-line BibTeX entry for a package or a paper (type, key, title, author or year).
2. Write one sentence that cites that key with @.
